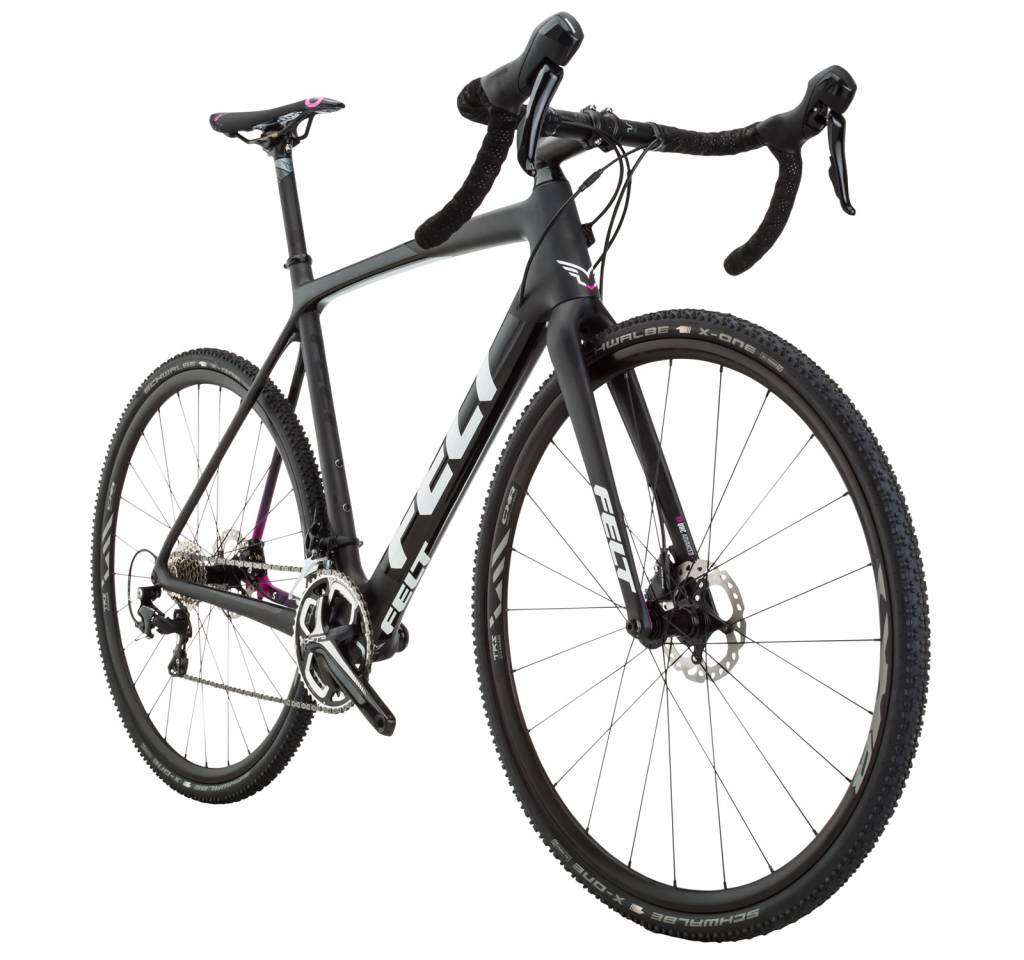

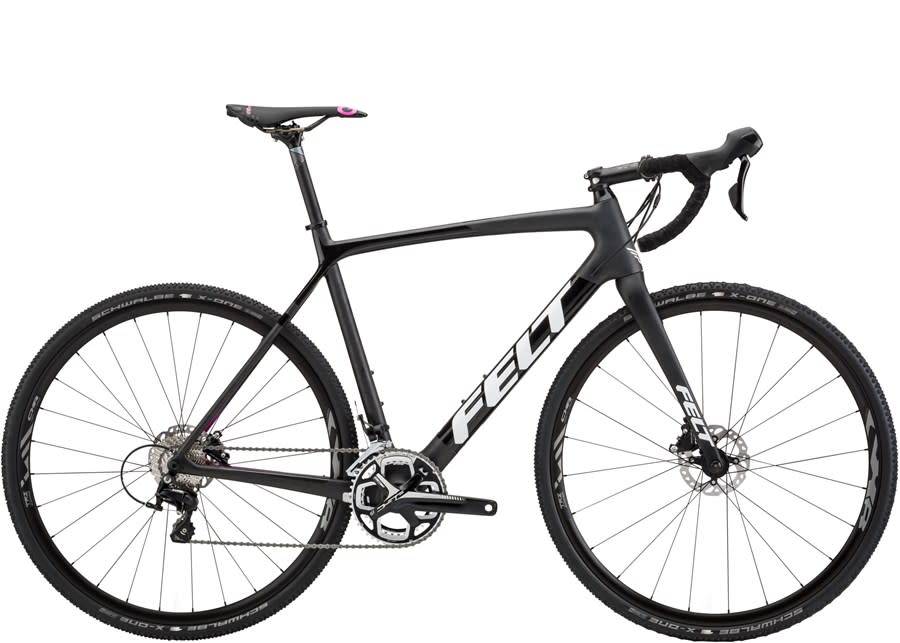

Felt 2018 F5X

The F5x breaks the mold when it comes to performance and perception. The most value-laden carbon model in the Fx Series, the F5x features a UHC Advanced + TeXtreme carbon frame and fork, making for a stiff and efficient pedaling platform that also reduces the rough hits and chatter found on the roughest cyclocross race courses. Built with a Shimano 105 drivetrain for smooth shifting and dependability, the F5x also comes with tubeless-ready wheels and Schwalbe X-One tires to help reduce flats and allow you to dial in your preferred tire pressure for the muddiest and wettest conditions.

• Finish:

  Matte TeXtreme (Gloss Black, Magenta)

• Sizes:

  50, 53, 55, 57, 60cm

• Weight:

  20.2lbs, 9.1kgs

• Frame:

  Felt Cyclocross UHC Advanced + TeXtreme carbon fiber, MMC with InsideOut construction, BB386 bottom bracket shell, 12 x 142mm Syntace style thru axle, shoulder friendly top tube, flat mount disc brake standard, replaceable rear derailleur hanger, internal mechanical or electronic cable routing

• Shock:

  n/a

• Fork:

  Felt Cyclocross UHC Advanced + TeXtreme carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" aluminum steerer tube, carbon fiber blades, flat mount disc standard, 12 x 100mm thru axle

• Headset:

  FSA integrated sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), Felt top cap and aluminum bolt, No.42, 1.125 - 1.5"

• Stem:

  Felt CXR SuperLite, ±7° rise, Ø31.8mm, 50 - 53cm: 90mm --- 55cm: 100mm --- 57cm: 110mm --- 60cm: 120mm

• Handlebar:

  Felt CXR SuperLite, 86mm reach, 130mm drop, Ø31.8mm, 50cm: 420/450mm --- 53 - 60cm: 440 / 470mm

• Grips:

  Felt CxGel tape with Felt Bubble-Tech F-Wing bar end plugs

• Bar Ends:

  Shimano RS505 11-speed

• Shifters:

  Shimano RS505 11-speed

• Front Derailleur:

  Shimano 105 clamp-on, Ø34.9mm

• Rear Derailleur:

  Shimano 105 11-speed short cage

• Crankset:

  FSA Gossamer Pro ABS BB386, 46/36T, 50cm: 170mm -- 53cm: 172.5mm --- 55 - 60cm: 175mm

• Chainwheel

  n/a

• Chainguide:

  n/a

• Bottom Bracket:

  FSA BB386 with 30mm bearings

• Pedals:

  n/a

• Chain:

  Shimano 11-speed

• Freewheel:

  Shimano 11-speed, 11-28T

• Brake Levers:

  Shimano RS505, hydraulic

• Brakes:

  Shimano RS505 hydraulic disc with 140mm rotor

• Cables:

  n/a

• Saddle:

  Prologo Nago Evo X10 T2.0

• Seat Post:

  Felt CxR2, Ø27.2mm x 300mm length

• Seat Post Clamp:

  Felt single bolt, Ø31.8mm

• Rims:

  Felt CxR3 Disc, tubeless ready, 17mm inner width, 24mm depth

• Front Hub:

  Felt R3 Disc, sealed cartridge bearing, 12 x 100mm thru axle, Center Lock, 24H

• Rear Hub:

  Felt R3 Disc, sealed cartridge bearing, 11-speed, 12 x 142mm thru axle, Center Lock, 28H

• Spokes:

  2.0mm stainless steel

• Tires:

  Schwalbe X-One All Around MicroSkin TL-Easy, folding, 700 x 33c
