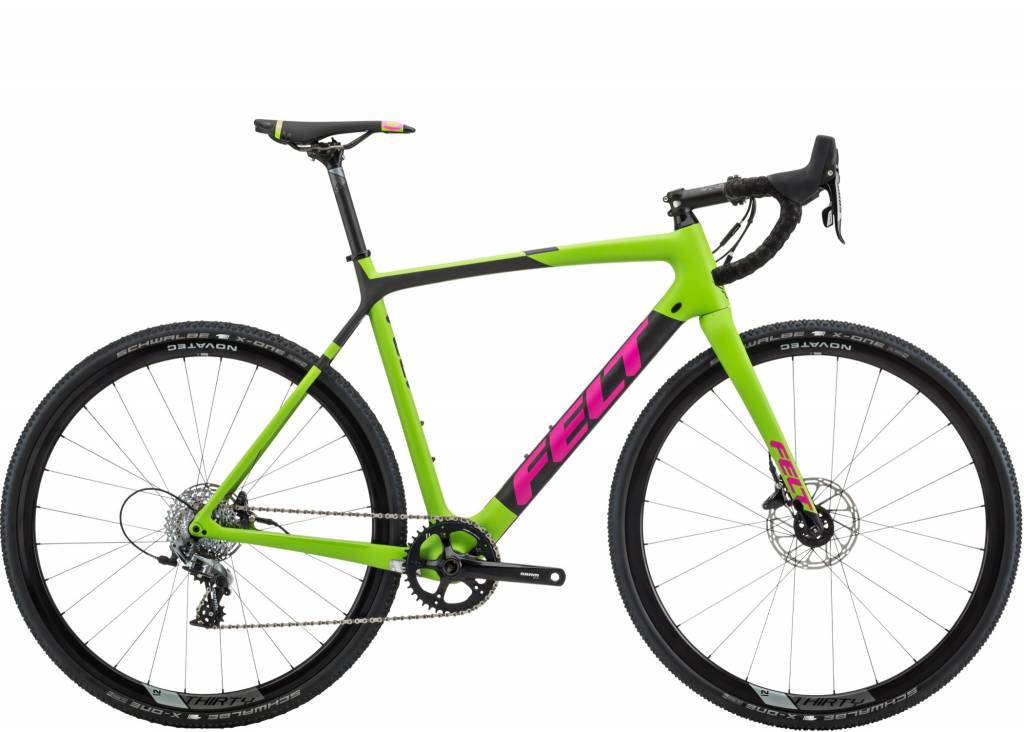

Felt 2018 F4X

Take light and strong UHC Advanced + TeXtreme carbon fiber, add sealed internally routed cabling and SRAM components, and you get the F4x racing machine. SRAM Rival 1x gearing never drops a chain and flat mount hydraulic disc brakes ensure you’re ready to stop and run up the stairs to beat the competition to the finish line.

• Finish:

  Matte Textreme (Slime Green, Magenta)

• Sizes:

  47, 50, 53, 55, 57, 60cm

• Weight:

  n/a

• Frame:

  Felt Cyclocross UHC Advanced + TeXtreme carbon fiber, MMC with InsideOut construction, BB386 and 12 x 142mm with Syntace style thru axle dropouts, shoulder friendly top tube, flat-mount disc brake standard, replaceable rear derailleur hanger, mechanical (internal) or electronic (internal) cable routing

• Shock:

  n/a

• Fork:

  Felt Cyclocross UHC Advanced + TeXtreme carbon fiber monocoque construction, ControlTaper 1.125" - 1.5" aluminum steerer tube, carbon fiber blades, flat mount disc standard, 12 x 100mm thru axle

• Headset:

  FSA NO.38/42, 1.125" - 1.5" sealed cartridge bearing with Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1 x 10mm + 2 x 5mm PC headset spacers, Felt compression device, aluminum top cap and bolt

• Stem:

  Felt CXR SuperLite, ±7° rise, Ø31.8mm 47 - 53cm = 90mm 55cm = 100mm 57cm = 110mm 60cm = 120mm"

• Handlebar:

  Felt CXR SuperLite, 86mm reach, 130mm drop, Ø31.8mm 47 - 50cm = 420 / 450mm 53 - 60cm = 440 / 470mm"

• Grips:

  Felt CxGel Tape

• Bar Ends:

  Felt Bubble-Tech "F Wing"

• Shifters:

  SRAM Rival Cx1 DoubleTap

• Front Derailleur:

  n/a

• Rear Derailleur:

  SRAM Force Cx1 Type 2.1 medium Cage

• Crankset:

  SRAM S350 Cx1 GXP 47cm = 165mm 50cm = 170mm 53cm = 172.5mm 55 - 60cm = 175mm

• Chainwheel

  SRAM XSYNC, 40T

• Chainguide:

  n/a

• Bottom Bracket:

  Token For BB386 Frame with SRAM GXP Crankset

• Pedals:

  n/a

• Chain:

  SRAM 11-speed

• Freewheel:

  SRAM, 11-32T

• Brake Levers:

  SRAM Rival Cx1 DoubleTap

• Brakes:

  SRAM Rival Hydraulic Disc flat-mount with SRAM 160 mm & 140 mm Centerline rotors

• Cables:

  SRAM Hydraulic brake and Felt Cross Elite Sealed Compressionless derailleur

• Saddle:

  Prologo Nago Evo X8 T2.0

• Seat Post:

  Felt CxR2, Ø27.2mm, 300mm length

• Seat Post Clamp:

  Felt single bolt, Ø31.8mm

• Rims:

  Novatec 30 Disc

• Front Hub:

  Felt R2 Disc, sealed cartridge bearing, 12 x 100mm thru axle, 6-bolt, 24H

• Rear Hub:

  Felt R2 Disc, sealed bearing, 28H, 11-speed, 12 x 142mm thru axle

• Spokes:

  2.0mm stainless steel with alloy nipples

• Tires:

  Schwalbe X-One Evo, 700c x 33c

• Fenders:

  n/a

• Kickstand:

  n/a

• Accessories:

  Carbon assembly paste, chain plate protector, Felt CxR cowbell
